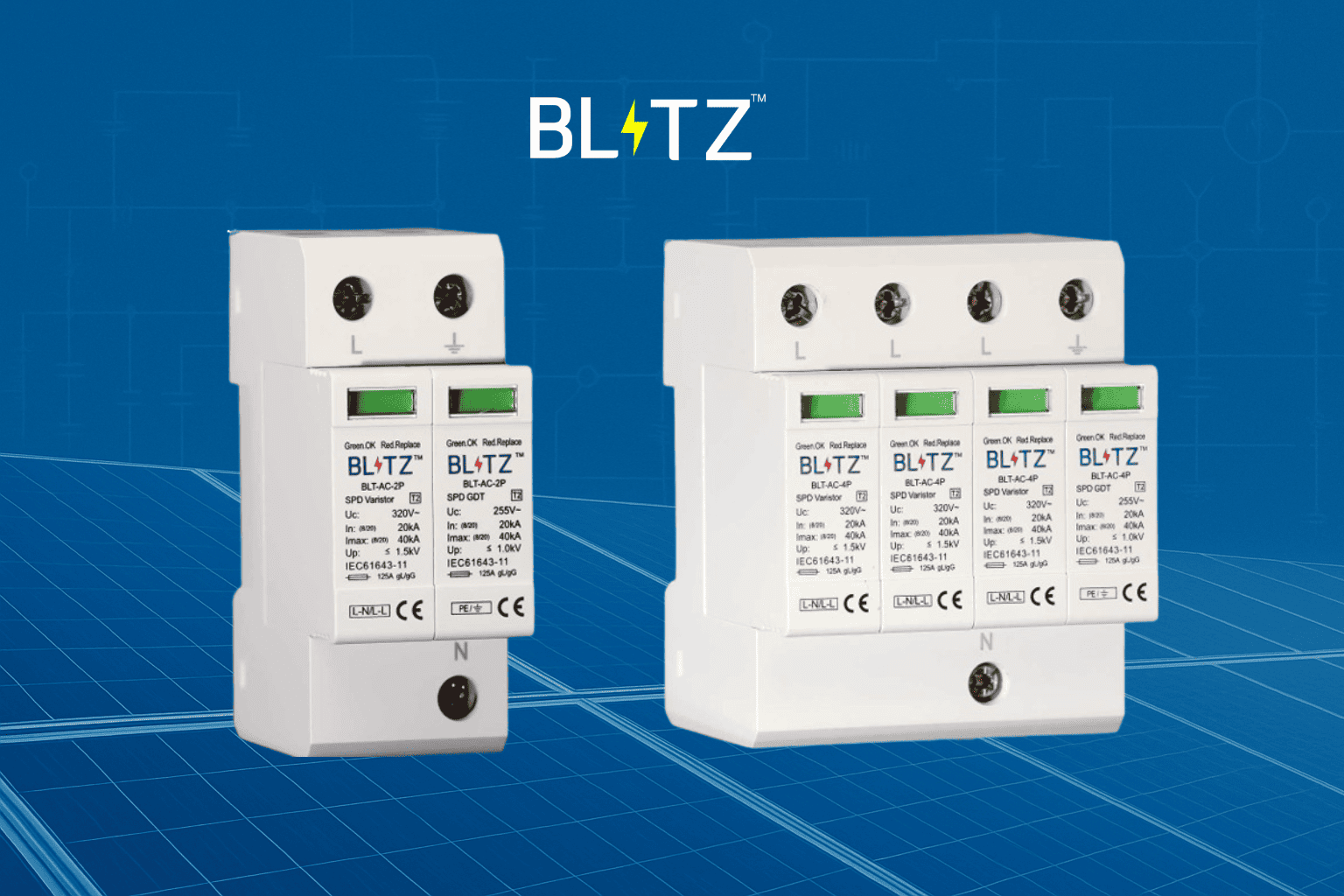

AC SPD 1 Phase 2 Pole & AC SPD 3 Phase 4 Pole: Complete Guide by Blitz
In the modern day and age where electrical and electronic systems happen to be the pillar of most modern homes, offices, and industries the demands of having safety measures have never been higher. This is because of power surges, lightning strikes and switching transients are common failures of electrical systems causing costly damages, down time, and safety risks.
This is where Surge Protection Devices ( SPDS ) come in. Blitz is a respected brand name in electrical protection that leads to the installation of high quality of SPDs to safeguard residential and industrial premises. Two of the most well used models are:
- SPD1 Phase2 Pole
- AC SPD 3 Phase 4 Pole
This blog will discuss the features, difference, advantages, use, and why you should use Blitz SPDs with a long useful life.
What is Surge Protection Device (SPD)?
A Surge Protection Device (SPD) is an electrical device that primarily protects sensitive equipment by limiting or restraining the effect of transient overvoltages, also called surge. These surges can be related to an outside origin such as lightning strikes or an internal origin such as switching operations and faulty equipment.
SPDs are used to dissolve the extra voltage out to the ground where it will not cause any damage to the equipment attached.
Blitz SPDs are made with innovation technology, which offers:
- Huge surge current carrying capacity
- Short response time
- Long life-span of its operations
- International safety conformity.
AC SPD 1 Phase 2 Pole
In special cases, AC power supply system designed on a single phase (Blitz AC SPD 1 Phase 2 Pole) is specifically created. It provides full transient protection of small commercial and residential applications.
Key Features
- Designed in single-phase networks of 230V AC.
- On 2 poles (Line +Neutral to Earth protection).
- Large discharge current rating
- Space-saving system that fits standard DIN rail mounting.
- Dynamic fault indicator to monitor easily.
Applications
- Residential homes.
- Small offices.
- Shops and business promote.
- Single phase solar inverter protection.
- Shielding delicate electronic devices such as TV, routers, refrigerators, and computers.
AC SPD 3 Phase 4 Pole
The Blitz AC SPD 3 Phase 4 Pole is designed to work in an AC system supply network in an industrial or commercial environment where large machines and multiple loads, are powered.
Key Features
- It is made to serve a three-phase 415V AC system.
- It has 3 Line + Neutral to Earth protection.
- High discharge capacity on surge that is appropriate in industry setups.
- Thermal disconnection mechanism is provided to achieve enhanced safety.
- Optional monitoring contacts with remote signalling.
Applications
- Industrial factories and plants.
- Big business premises
- IT infrastructure and data centres.
- Hospitals and health facilities.
- Renewable energy plant (solar /wind three phases).
Difference Between AC SPD 1 Phase 2 Pole and AC SPD 3 Phase 4 Pole
| Feature | AC SPD 1 Phase 2 Pole | AC SPD 3 Phase 4 Pole |
|---|---|---|
| Power Supply Type | Single-phase (230V) | Three-phase (415V) |
| No. of Poles | 2 (Line + Neutral) | 4 (3 Line + Neutral) |
| Typical Usage | Homes, small offices, shops | Industries, factories, large buildings |
| Protection Coverage | Protects small loads and sensitive electronics | Protects heavy machinery, large-scale systems |
| Surge Current Capacity | Moderate | High |
| Cost | More affordable | Higher investment but essential for industries |
Why Buy Blitz SPDs?
- Effective Surge Protection: The products are tested to be able to withstand lightning related surges as well as switching transient surges.
- Wide Scope of Use - Usable in areas of residential use as well as industrial.
- Durability – Its durability is built using topnotch materials which ensure long lifespan.
- Compliance – Conforms to IEC/EN standards in surge protection.
- Easy to Install – Wide, exposed surface and Engulfing, potted-in design.
- After-Sales Support – Assistance to customers and after sales support guarantee a smooth use.
What Are the Considerations of Choosing the Right SPD to Your Needs?
The SPD to use will be determined by the kind of power system being guarded.
In case you work with a one-phase system (normal household), the Blitz AC SPD 1 Phase 2 Pole would be a proper solution.
When you have a three phase supply (industrial/commercial installation), the Blitz AC SPD 3 Phase 4 Pole offers maximum protection.
Other factors are:
- KA capacity.
- Voltage rating.
- Environmental aspects (installation indoors or outdoors).
- Preventive and surveillance functions.
Best Practices of Installation
According to Blitz, the following yields best results and is safe:
- Locate the SPD as near as convenient to the main distribution board.
- Make sure that electrical system is bonded and earthed.
- Put proper size of the wires and less lengths to have less impedance.
- Routinely check SPDs to look at wear and when handling a major surge occasion, then replace them.
Surge Protection Future
As there is increased dependency on delicate electronics gear and automation, both in homes and in industries, SPDs are not an option anymore but a necessity. The growth of renewable energy, smart houses, and the Industry 4.0 further contributes to the high level of demand of such an advanced surge protection.
Blitz has been on the forefront to develop innovations in this area delivering the best solutions to the current requirements.
FAQs
Conclusion
Just a singular phase home system or three phase industrial network, if power surges occur it will cause great disturbance and can lose a lot of money. Blitz AC SPD 1 Phase 2 Pole and Blitz AC SPD 3 Phase 4 Pole offer the needed protection to keep systems safe, reliable, and efficient.
By selecting Blitz, you are not only investing in an SPD, but also confidence of uninterrupted service, safety and peace of mind.
