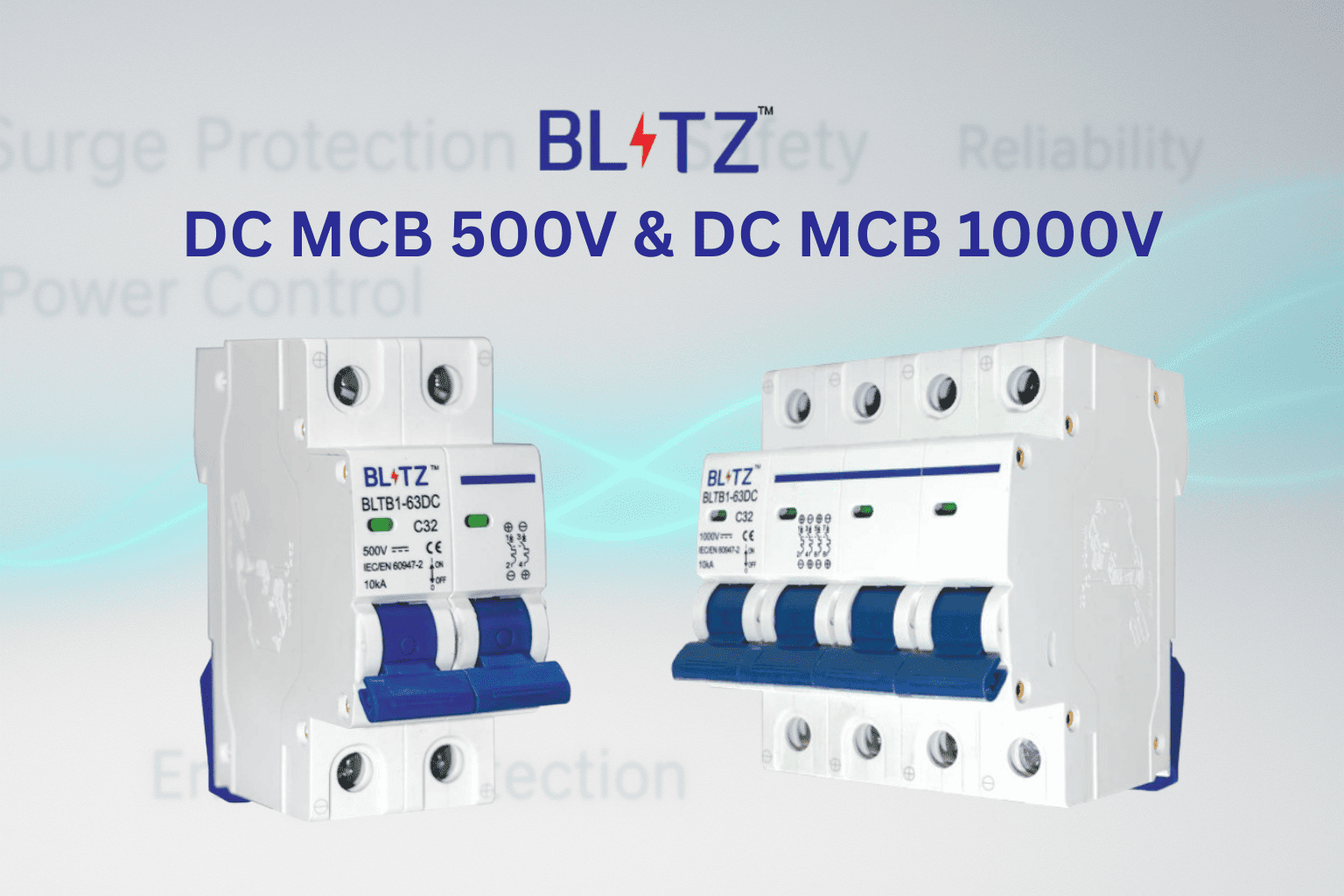

DC MCB 500V & DC MCB 1000V
With the power of renewable energy, electric vehicles (EVs), and battery storage technology on the rise, direct current (DC) systems are growing to play a significant role in residential and industrial systems. Along with this growth comes the requirement of decent protection devices to protect equipment, circuits and people.
Miniature Circuit Breaker (MCB) presents one of the most important parts of safety in DC networks. DC MCBs are unique in that they are designed to handle the new sets of challenges set forth by DC currents, including arc suppression.
Blitz has a reputation of high-quality electrical protection and is an authoritative brand in the field of electrical protection that has designed high-quality DC MCBs according to the modern demands of energy. Two of the most popular picks are
In this blog entry, we will look at their characteristics, differences, uses and why Blitz MCBs are considered the best choice in DC protection.
What is a DC MCB?
A DC Miniature Circuit Breaker (MCB) is an electromechanical device which, under the influence of overcurrent, overload or short-circuit, will automatically deactivate a circuit.
Unlike AC, DC current does not reverse in direction and therefore electric arcs are harder to break across the circuit as the DC current always flows in the same directions. A DC MCB is designed with special arc-extinguishing chambers with polarity-sensitive contacts to allow DC current to be disconnected safely when required to do so.
Blitz DC MCBs are also known:
- In high breaking capacity
- Space saving and self contained designs.
- Long durable life
DC 500V MCB
The Blitz DC MCB 500V is medium-voltage DC designed. It is also a trusted solution to protect up to 500 volts DC making it an ideal solutions to solar PV arrays, residential battery systems, and commercial DC applications.
Key Features
- DC Rated Voltage: 500V.
- Breaking capacity: sufficient enough to withstand small to medium sized systems fault currents.
- Slim DIN rail mounting
- Arc-extinguishing chamber in which to break.
- Design which can only be installed correctly under polarising conditions.
Applications
- Build rooftop solar PV systems.
- DC distribution boards (up to 500V).
- Small, medium energy storage systems.
- Split-systems (solar applications).
- Profit DC device protection
DC 1000V MCB
The Blitz DC MCB 1000V is designed to protect high-voltage DC systems with high performance - in large-scale solar plants, utility energy storage, and EV infrastructure. It provides stable functionality even in the harsh conditions.
Key Features
- Maximum rated voltage: 1000V DC.
- High fault current breaking capacity to industrial-level fault current.
- Folding and lightweight.
- ASR-LAF arc extinguishing system
- Though the thermal tripping is primary a magnetic mechanism.
Applications
- Large-scale solar.
- Huge energy storage of batteries (BESS).
- Electric Vorentahlung infrastructure
- High-voltage DC industrial and commercial distribution.
- Microgrid and Hybrid installations.
Difference Between DC MCB 500V and DC MCB 1000V
| Feature | DC MCB 500V | DC MCB 1000V |
|---|---|---|
| Rated Voltage | 500V DC | 1000V DC |
| Typical Usage | Residential, small commercial | Large commercial, industrial, utility-scale |
| Breaking Capacity | Moderate | High |
| Applications | Rooftop solar, small BESS, DC panels | Solar farms, EV chargers, large BESS, microgrids |
| Cost | More affordable | Higher investment, essential for large systems |
Why use Blitz DC MCBs?
- High Safety Standards - Designed to high arc suppression Technology.
- Wide Range - Blitz has a range of 500V to 1000V to meet all DC current protection needs, big and small.
- Robust Design- Long wear, even on heavy switching
- Compact & Modular-Space saving, DIN rail friendly.
- Compliance -Manufactured according to IEC/EN standards
- Brand Reliability- Blitz is known across industries as SPDs, MCBs, fuses, and surge protection products.
Installation Guidelines
- Always replace on the basis of polarity marks (P+ AND P-).
- To mount on a DIN rail, inside the DC distribution box.
- Use proper size of cable to carry up to expected current.
- Proper earth the DC system.
- A competent electrician do the installation and maintenance.
The significance of DC MCBs in renewable energy
- Guard against short circuited and over-loaded circuits.
- Enhance the reliability of system and availability.
- Protect costly devices such as inverters and batteries.
- Increase general electrical safety to both the user and technician.
FAQs
Conclusion
It can be a 500V DC rooftop solar system or a 1000V utility scale PV(solar) plant, the protection of circuits is not a negotiation issue. Blitz DC MCB 500V is suitable in medium-voltage residential and commercial networks, and the Blitz DC MCB 1000V is safe to use in a large industrial network.
When you select Blitz, you will have safety and reliability, and long-term performance in every DC power system you manufacture.
