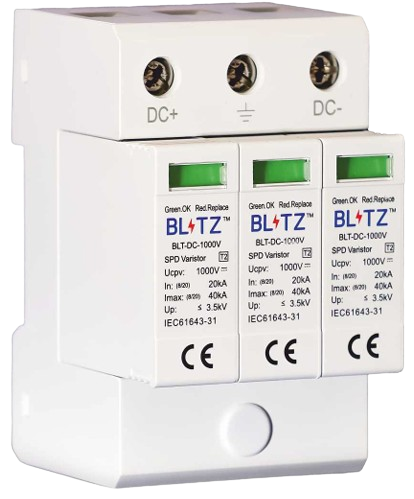

DC SPD 1000V
The Blitz DC SPD 1000V is a high-performance surge protection device designed for advanced DC systems such as large-scale solar PV installations, battery energy storage systems (BESS), and industrial DC panels. It effectively protects equipment from dangerous overvoltage surges caused by lightning and switching transients. This Type 2 SPD features a fast-acting mechanism, compact DIN-rail mounting, and reliable visual status indication.
- Rated Voltage: 1000V DC
- Nominal Discharge Current (In): 20kA
- Maximum Discharge Current (Imax): 40kA
- Voltage Protection Level (Up): ≤ 3.5kV
- Response Time: ≤ 25ns
| TECHNICAL PARAMETERS | SPECIFICATIONS |
|---|---|
| SPD Classification According to EN61643-31 | Type 2 |
| SPD Classification According to IEC61643-31 | Class II |
| Max. Continuous Operating Voltage (Ucpv) | 1000V DC |
| Nominal Discharge Current (In) | 20kA |
| Max. Discharge Current (Imax) | 40kA |
| Voltage Protection Level (Up) | ≤ 3.5kV |
| Response Time (ta) | ≤ 25ns |
| Operating Temperature Range (Tu) | -40°C to +70°C |
| Operating State / Fault Indication | Green / Red |
| Cross-Section Area (Min) | 4mm2 |
| Cross-Section Area (Max) | 25mm2 |
| Mounting | 35mm Din rail |
| Enclosure Material | Thermoplastic UL94-V0 |
| Short Circuit Current Rating (Iscpv) | 1000A |
| Remote Signalling Contact | Optional |
| Degree of Protection | IP20 |
