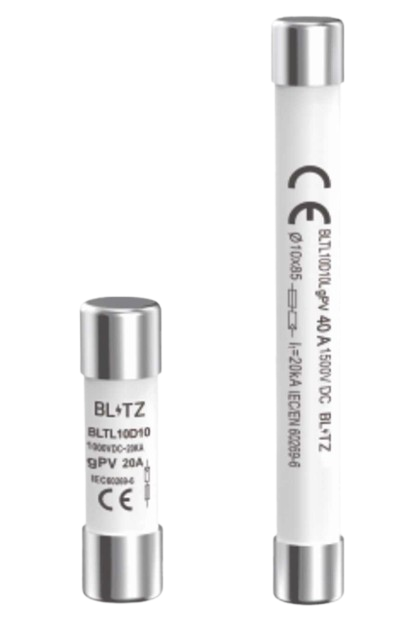

PV Solar Fuse
The PV Solar Fuse is a compact, high-performance protection device designed specifically for photovoltaic systems. Available in 1000V DC and 1500V DC variants, it ensures reliable overcurrent protection for solar strings and DC circuits. Its compact size, robust build, and easy mounting on CHK/CHKS channels make it ideal for use in solar combiner boxes and inverter input protection.
- Rated Voltage: 1000V DC and 1500V DC variants
- Rated Current: 32A (1000V), 35A/50A (1500V)
- Degree of Protection: IP20
- DIN Rail Mounting: Compatible with CHK / CHKS channels
| TECHNICAL PARAMETERS | SPECIFICATIONS (1000V DC) | SPECIFICATIONS (1500V DC) |
|---|---|---|
| Rated Voltage | 1000 V DC | 1500 V DC |
| Rated Current (In) | 20 / 25 / 30 A | 35 / 50 A |
| Type | PV (Cylindrical) | PV (Cylindrical) |
| Dimension | Ø 10 × 38 mm | Ø 10 × 85 mm |
| Testing Standard | IEC 60269-6 | IEC 60269-6 |
| Class of Operation | gPV | gPV |
| Breaking Capacity | 50kA | 50kA |
